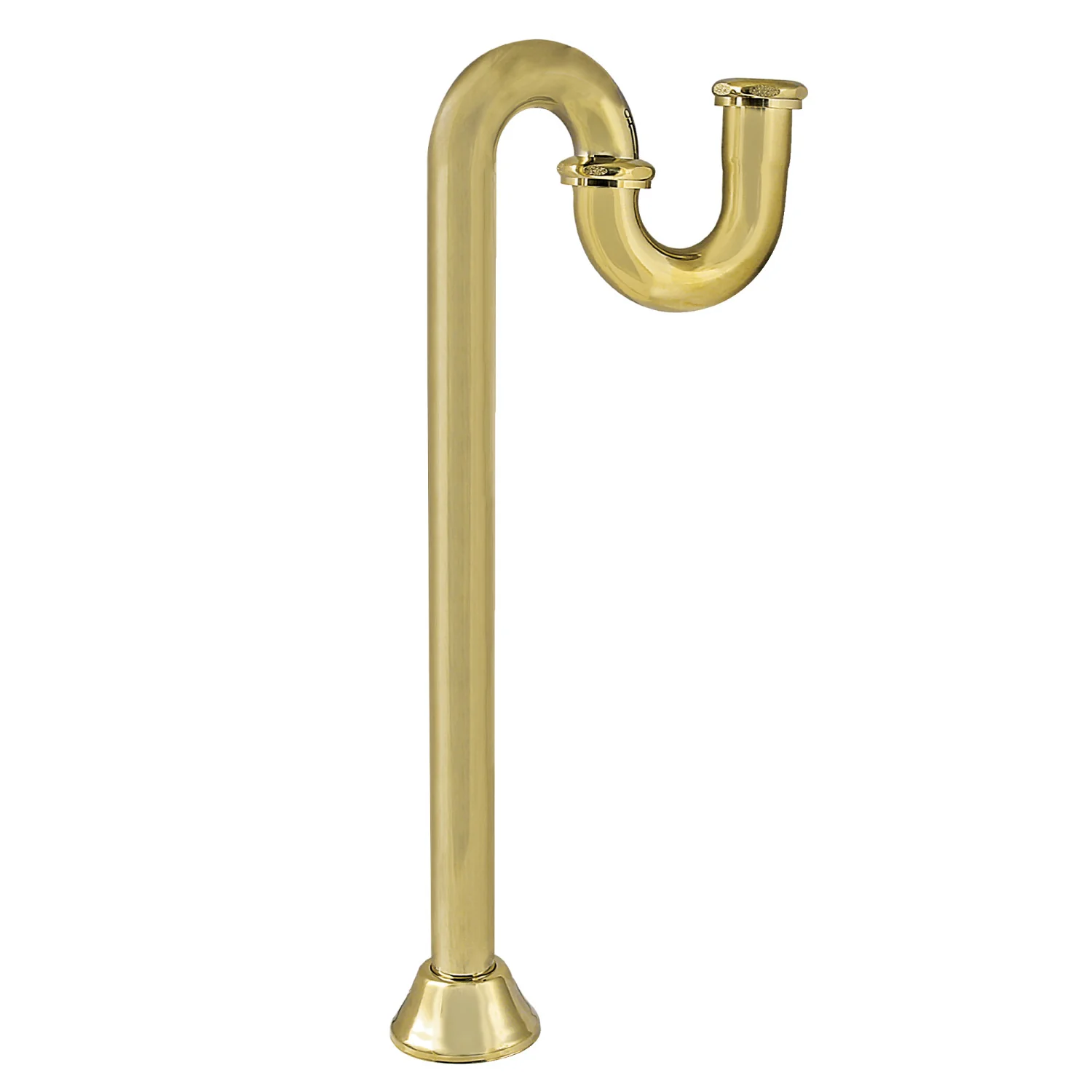

Kingston Heirloom ST14192-Vintage 1-1/4 Inch Brass S-Trap, 18 Gauge, Polished Brass

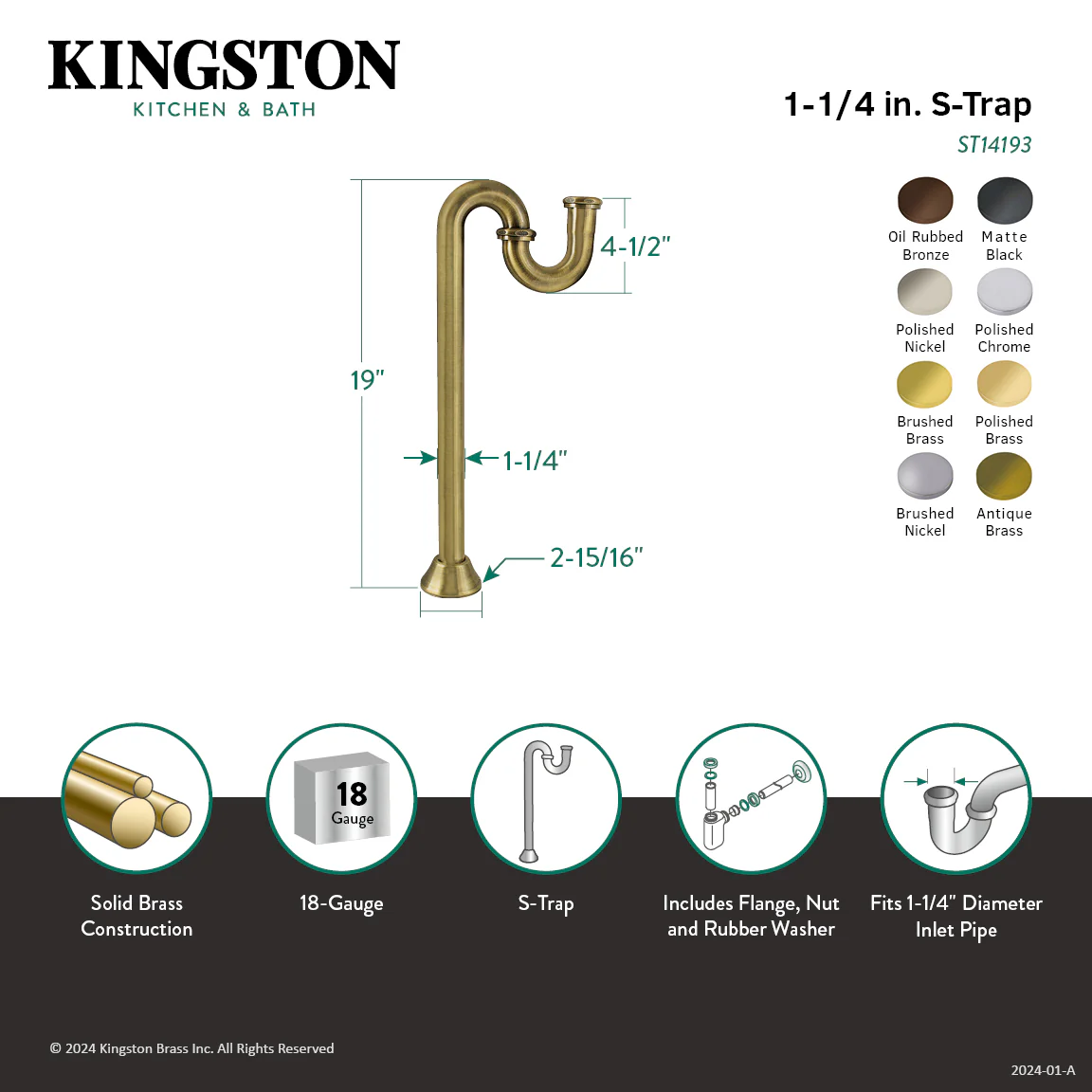

The Kingston Brass Vintage 1-1/4" S-Trap features an S-curve trap and includes a finish-matched vertical drain waste for connection to a drain pipe plumbed through the floor as well as a matching flange for a finished look when installed. Finish-matched drain traps are particularly well suited to installation with console vanities and wall-mount sinks, as they can be seen immediately, and these traps can also add a bit of refined detail to enjoy when installed behind cabinets. The trap accepts a standard 1-1/4" bathroom sink drain tail, features 18-gauge brass construction, and the overall height of the product is 19" to fit most applications. An additional drain tailpiece may be purchased separately if a greater overall installation height is required. Overall product dimensions are 2.94" Wide (max diameter at slip joint aperture), 6.13" Front to Back (total length of S-Trap), and 19" Tall (total height including trap and waste).

Features

• High quality brass construction
• 18-gauge brass tubing
• 1-1/4" inlet connection size
• 19" overall height
• Includes a matching flange
• Check local building code prior to purchasing this product
• Scratch, corrosion and tarnish-resistant finish offers durability and years of beauty

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide
