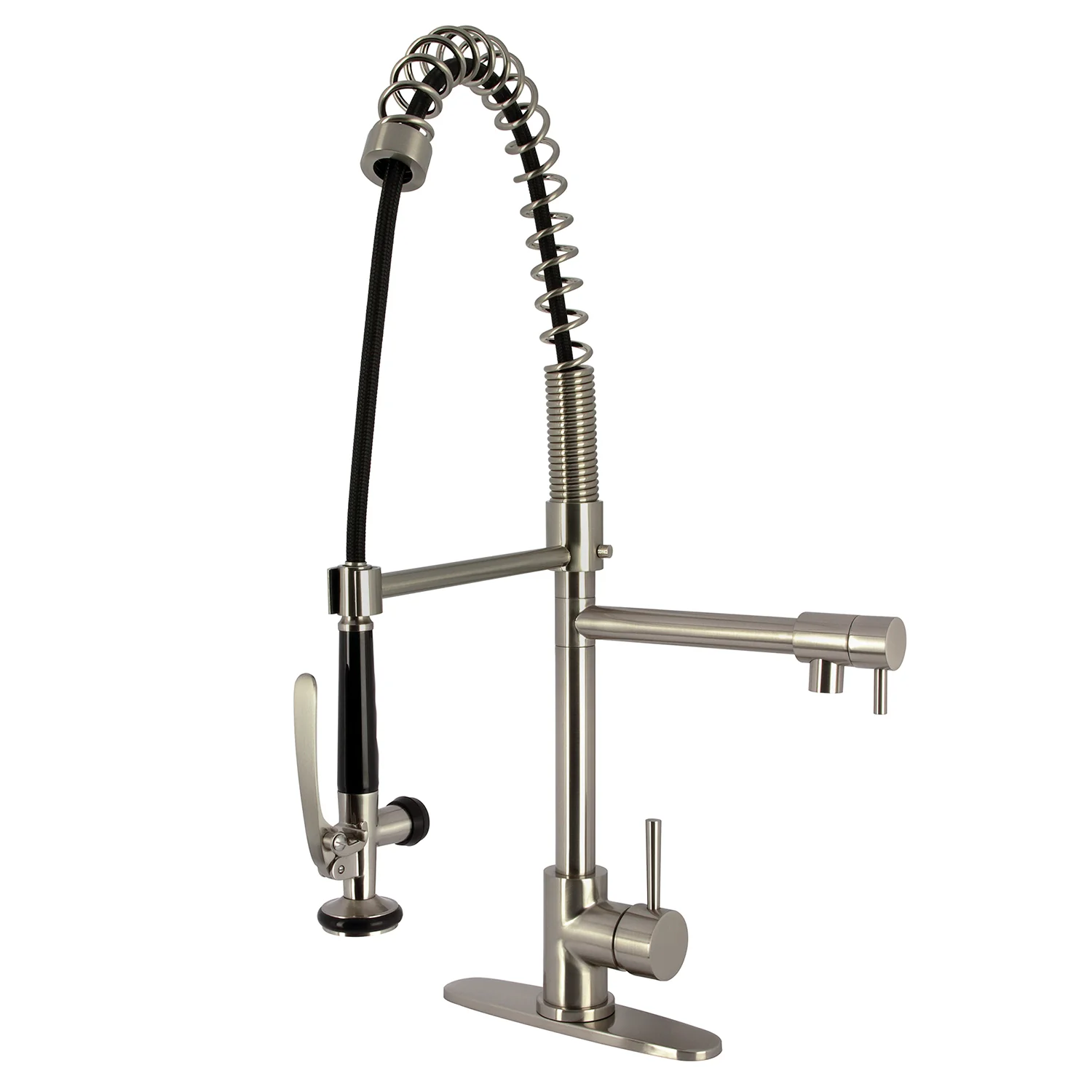

Kingston Sona LS8508DL-Concord Single-Handle 1-Hole Deck Mount Pre-Rinse Kitchen Faucet, Brushed Nickel

This faucet from the Concord collection, boasts bold, sleek design with its cylindrical styling. Designed for optimum versatility and functionality, the restaurant grade sprayhead and the rotating swivel spout leaves no area of the sink untouched as the professional look of the exposed spring provides industrial function in a residential aesthetic.

ADA compliance for faucets ensures accessibility for individuals with disabilities. Faucets must be designed for easy operation by persons with mobility issues, featuring lever handles that require minimal effort to turn on and off. These elements promote independence and safety, allowing individuals with mobility impairments to use the faucets with ease and dignity, in line with the Americans with Disabilities Act (ADA).

Features

• Item weight: 9.26 lbs.
• Solid brass and stainless steel construction
• Deck mount 1-hole installation with 9-13/16" (249.24 mm) deck plate
• Drip-free ceramic disc cartridge
• 1/2-14 NPSM connection
• 1.8 GPM/6.8 LPM spout flow rate at 60 PSI
• Overall dimension: (W)9-13/16" (249.17 mm) x (D)10" (254 mm) x (H)28-1/4" (717.55 mm)
• 10" spout reach
• 5-1/8" spout clearance
• 28-1/4" spout height
• Spring neck spout
• Single lever handle meets ADA guidelines
• Swivel spout for maximum clearance and versitility
• Sprayer provides 2-function stream flow
• Includes 8" pot filler

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide
	Repair Instruction

Compatible Parts

Compatible parts and components for this item. Please also ensure each selected additional item is compatible as appropriate.

Hoses: LSSPRHOSE298
