Kingston Sona CC43106DLVKB30-Trimscape Modern Plumbing Sink Trim Kit with Bottle Trap and Drain, Polished Nickel

This contemporary style vessel sink kit (with overflow hole) consists of all the components necessary to install a waste water draining system. The parts included are single handle 1/2" IPS angle stops, 30" bullnose lavatory supply lines, 1/2" IPS bell flanges, a 13-7/8" bottle-trap, mounting ring and an 22-gauge push-button drain without overflow hole. Constructed of high quality material and a tarnish-resistant finish, designed for long-lasting performance. Available in a variety of stunning finishes ready to match any home decor.

Features

• Solid brass construction
• Supply and p-trap plumbing trim kit for bathroom sinks

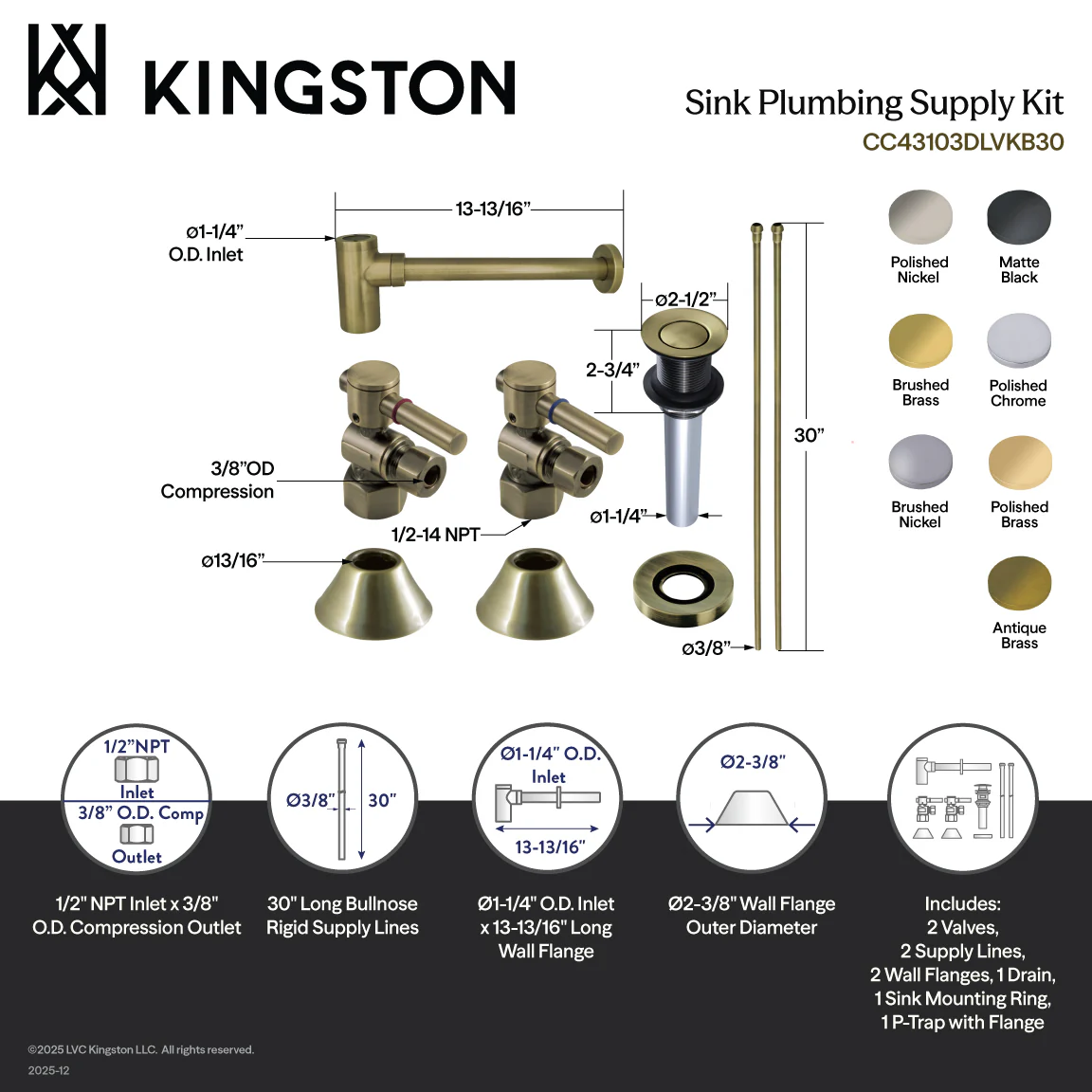

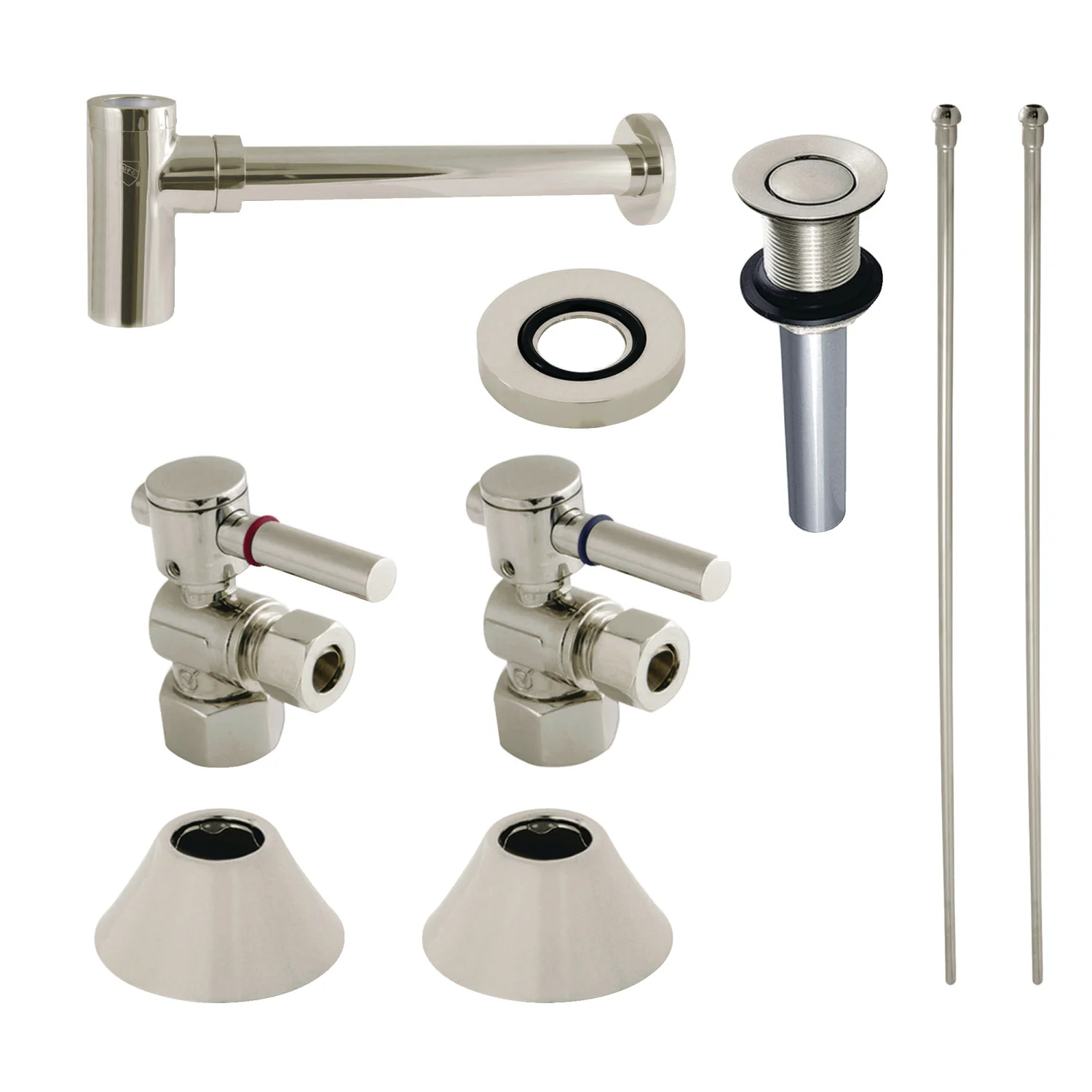

• Kit contains: 2 angle stops, 2 wall flanges, 2 supply lines, 1 p-trap, 1 p-trap wall flange, 1 drain, 1 mounting ring
• Angle stops designed to fit 1/2" NPT male (exterior threads) stub-out
• Angle stop inlet is 1/2" NPT female (interior threads)
• Angle stop outlet is 3/8" O.D. compression (compression slip fit)
• Angle stops include modern lever handle
• Includes (2) 2-3/8" bell flanges to cover any unsightly holes
• Two pieces 3/8" x 30" bull nose rigid supply lines
• One modern bottle style p-trap with flange
• P-trap is 1-1/4" diameter for bathroom sink drains
• P-trap measures 13-13/16" from drain end to wall-end
• One "no overflow" drain and mounting ring kit for vessel sink
• 22 gauge 1-1/4" O.D. push-up pop-up drain, no overflow

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide

Compatible Parts

Compatible parts and components for this item. Please also ensure each selected additional item is compatible as appropriate.

Tailpieces: EVP1006
