Kingston Sona CC43101DLVOKB30-Trimscape Modern Plumbing Sink Trim Kit with Bottle Trap and Overflow Drain, Polished Chrome

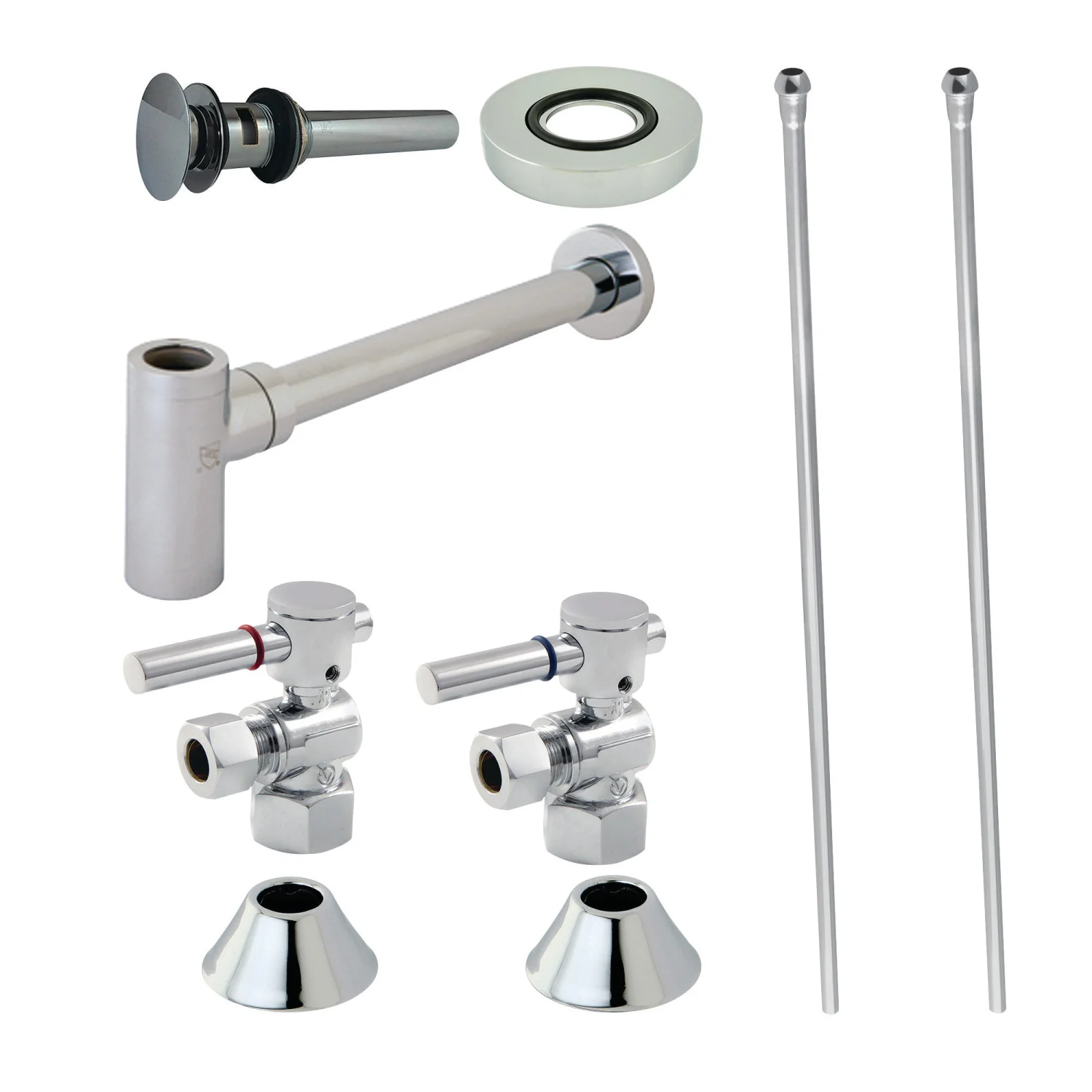

This contemporary style vessel sink plumbing kit consists of all the necessary components for installing a waste water draining system. The parts included are single handle 1/2" IPS angle stops, 30" bullnose lavatory supply lines, 1/2" IPS bell flanges, a 13-7/8" bottle-trap and a drain with mounting rain. All the parts are made from polished chrome for resistance in stain and tarnishing.

Features

• Solid brass construction
• Supply and p-trap plumbing trim kit for bathroom sinks

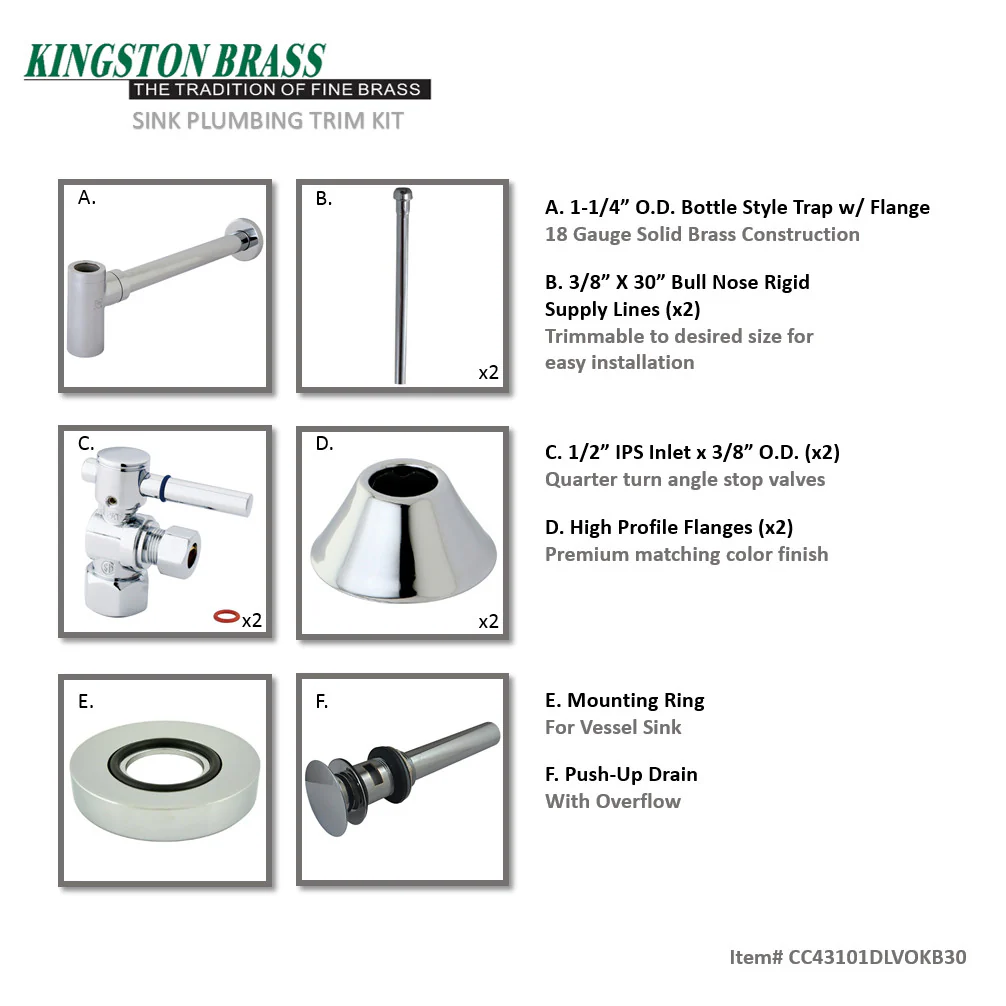

• Kit contains: 2 angle stops, 2 wall flanges, 2 supply lines, 1 p-trap, 1 p-trap wall flange, 1 drain, 1 mounting ring
• Angle stops designed to fit 1/2" NPT male (exterior threads) stub-out
• Angle stop inlet is 1/2" NPT female (interior threads)
• Angle stop outlet is 3/8" O.D. compression (compression slip fit)
• Angle stops include modern lever handle
• Includes (2) 2-3/8" bell flanges to cover any unsightly holes
• Two pieces 3/8" x 30" bull nose rigid supply lines
• One modern bottle style p-trap with flange
• P-trap is 1-1/4" diameter for bathroom sink drains
• P-trap measures 13-13/16" from drain end to wall-end
• One pop-up drain with overflow and mounting ring kit for vessel sink
• 22 gauge 1-1/4" O.D. push-up pop-up drain with overflow hole

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide

Compatible Parts

Compatible parts and components for this item. Please also ensure each selected additional item is compatible as appropriate.

Tailpieces: EVP1001
